ZX10r
2006 - 2007

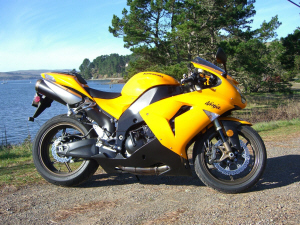

Graham Gillie's ZX10r on the west Marin coast



    Hybrid Ceramic Wheel Bearings
Superflare Billet Velocity Stacks
(patented)
 2 piece, quick change design)
EVO Shift STAR kit
(Factory Pro's own copyrighted design)



dealers!


Unleash your bike's power and control



Factory Pro
Race bike ECU Reflash
  • Fuel and ign changes are custom items
  • adjust IAP Fuel Maps for better race part throttle
  • adjust TPS Fuel Maps for better race power
  • adjust Ignition Maps for more race torque
  • Secondary Throttle Plate (STP) Opening Maps
  • Adjust RPM Limiters
  • Disable Top Speed Limiter
  • Disable Stock O2 Sensor for racing
  • Disable Exhaust Valve for racing


Remove high rpm power restrictions
Change rev limiter.
Remove / modify speed limiters
Modify ignition timing

The 06-07 can really use ign timing changes

We have all learned that each bike, even with the same aftermarket parts, requires different mapping than it's identical twin bike. That's why when someone  "downloads the perfect map" off of some website for a pc or Bazzaz, that it only has a 10% chance of being perfect "on YOUR bike".
With 35+ years of tuning experience, Factory Pro knows that the key to silky smooth and strong  running is individualized, perfect tuning on each bike - That's why we do tuning for people all over. Except CA sttreetbikes.

$275 for non-ca unrestrict reflash (which is commonly done)

marc@factorypro.com

(415) 472-4962



Pro Power ECU reflash
race and trackday


semi custom - mail in ecu


Subtle modification of STP acc and STP decel tables
 subtle ignition table sculpting
unify fuel and but not unify the ignition tables
raise rev limit a bit and disable top speed limiter
elim O2 sensor light for race only use
elim exhaust valve servo CE light

not CA street legal


(April 2015: reflash ecu guy says his bike is was better. More mid-range. better on off throttle.
He says thanks !
 ref: Paul F.)


Regular price $425

Special $375

(415) 491-5920 mail in


Reflash and TUNE to Best Power - custom tune on ec997 dyno
(not power losing autotune to an AFR)


Subtle modification of STP acc and STP decel tables
 subtle ignition table mods
unify fuel and ignition tables
raise rev limit a bit
elim O2 sensor light for race use

Custom Tune FUEL maps to your race bike
 with your Power Commander + race only reflash.

not CA street legal

$775

(415) 472-4962


Simple delimit:
100% Secondaries, raise rev limit, unify fuel and ign maps, blanket ign mod

$200

(415) 491-5920 mail in

not CA street legal


Low Friction Hybrid Ceramic Wheel Bearings
http://image2.cccme.org.cn/i_supply/2010/7/6/2010122602022725549_125637846.jpg

$238.14
intro special

reg $340.20

5 bearing kit
front and rear wheel + sprocket carrier
pn: BE-HYCER-K74-06-07
1. Choose your shipping method

2.

Hybrid Ceramic Wheel  Bearings

5 bearing set

2 front wheel bearings
2 rear wheel bearings
1 sprocket carrier bearing

Tough steel races and almost  friction free ceramic balls.

Bearings have rubber seals that are easy to remove if desired.


marc@factorypro.com

Billet Factory Pro design Velocity Stacks




VEL-K29-1055    $329.95
(v50 series stack)

1. Choose your shipping method

2.


Billet Superflare ZX10r Velocity Stacks

Very significant test results below.

In order to eliminate the possible errors created by aftermarket exhausts, our testing was done with:
stock engine, stock exhaust system and using the stock air filter.

Factory Pro Dyno Centers
Tuning to Best Power


email here
800 869-0497 or 415 491-5920
9-6 pac time M-F

Superflare stack EC997 dyno testing

2006 ZX10r
owner:  Graham Gillies

RED line is  stock exhaust stock air filter not retuned FI Factory Pro Superflare Billet Velocity Stacks
Blue line is stock exhaust stock air filter not retuned FI STOCK Velocity STACKS









Factory Pro's EVO Shift STAR kit - Fix the zx10 shift mechanism, don't sell the bike.

SHFT-STAR-K95    $149.95

kit contains: EVO Shift STAR only

(the bike already has a good arm and the F-Pro Shift Spring is sold separately)

1. Choose your shipping method

2.




Evo Shift STAR

Don't sell your "10". Just FIX the clunky shifting.

If you have a 2006 or 2007 zx10 and have notchy, clunky shifting - Install Factory Pro's copyrighted design Shift STAR kit and breathe a sigh of relief - Finally, smooth and Quick shifting.

Drags: Especially good with quickshifters and undercut gears. Complete gearshifts 5 to 10ms quicker - lower ET.

Roadrace: Quicker shifts with less effort - better upshifting and downshifting. Fewer missed shifts.

Takes about 1.5-2.0 hours for initial STAR install.

NOTE:
Using a "quickshifter"
Because the shift is completed quicker, please decrease "shift kill time" by ~10 ms.

This kit will speed up the shift mechanism. It doesn't make any difference if you use "manual shifting", an air or electric  shifter, have undercut gear dogs or not undercut gear dogs - It's the shift drum gear selector mechanism that we are rotating quicker and more accurately.

Factory Pro
"Fixing what the factory forgot"

800 869-0497
415 491-5920

info@factorypro.com

....................................


I just want to thank you for developing the shift star for my ZX10R.

Like your ad says: "Don't sell it, fix it!"
I am very impressed with the results, the shifter now feels like the rest of the controls.
It no longer feels like a toy that you are hurting when you are shifting.
July 7, 2006
Squire Tomasie




(sample pic only)

pn:  z95-k69-0501 spring

$39.95

fits 06-07 zx10r
replaces: 92145-0317 spring

Clutch cover gasket not included.

1. Choose your shipping method

2.







F-Pro Shift Spring (use with our Star for snappier shifting)


Installation available in San Rafael, CA

Wheelsmith / Factory
415 472-4962

Additional oem Kawasaki required parts (not supplied in kit)
1     GASKET, Clutch cover
Matched Injector Sets



Matched Injector Sets (exchange)

$120 for 1 set of 4 at  2%

$180 for 1 set of 4 at 1%
Matched injector Sets

Serious engine tuners agree that power is maximized with proper tuning - and optimal tuning isn't possible with mismatched injectors.
A weak injector can take out a pro dragbike's cylinder in a single run.

Factory Pro inspects, pulse cleans, static AND pulse flows mass quantities of injectors and carefully selects like flowing (both static and pulse) units and packages them up as sets.

Prices are for EXCHANGE of useable injectors.

At times, we may have enough inventory in stock to sell outright.

Call 415 491-5920  Injector Dept

info@factorypro.com
side orders.....
FIB-KAW-37619r

BMC RACE filter
$99.95

1.0 to 2.0 TRUE, Loaded, real HP
(no misleading dealership level dynos used in testing!)

800 869-0497

On the graph (click on it), you can even see that the fuel delivery was a bit leaner with the BMC - as evidenced by the lower red CO% line -
CO% is a much better way to derive estimated A/F Ratios as compared to wideband O2 sensors.

FIB-KAW-37619 S
BMC Street filter

$89.95

Street filter = Same as stock HP
(no misleading dealership level dynos used in testing, either!)

800 869-0497


Feedback

Marc,

Just wanted to say "Thanks", again. I'm really impressed by your calling me to give me the info on the advance rotor. That, in my book, is "Going the extra mile."  That's what makes a company succeed.
Congrats!

Steve ...in Kennesaw

Feb. 19, 2003


HI Marc,

Received the items on the 03Nov, fitted items on the 06Nov with Meng Tong. Enclosed is a picture for your information, or maybe you want post it out on the net. Also I used Loctite 243-Threadlocker and Loctite 7471 Activator for your information on the nut of the roller bearing and onto the allen screw holding the star.

I hope you find the pictures - use fully.

Yours Humbly,

David Isaac

-----Original Message-----
From: marc@factorypro.com [mailto: marc@factorypro.com]
Sent: Tuesday, October 31, 2006 5:22 AM
To: david.isaac@dlh.de
Subject: Re: Shift Star Kit for Kawasaki ZX10-R (04)

Hi Marc,

Received the items on the 03Nov, fitted items on the 06Nov with Meng Tong at Looi's Motor in Singapore.
Enclosed is a picture for your information, or maybe you want post it out on the net. Also I used Loctite 243-Threadlocker and Loctite 7471 Activator for your information on the nut of the roller bearing and onto the allen screw holding the star.

I hope you fine the pictures use full.

Yours Humbly,

David Isaac


-----Original Message-----
From: marc@factorypro.com [mailto: marc@factorypro.com]
Sent: Tuesday, October 31, 2006 5:22 AM
To: david.isaac@dlh.de
Subject: Re: Shift Star Kit for Kawasaki ZX10-R (04)



Hello David -
Received details - Shipping USPS Global Express tomorrow.
Should be about a week -
Snow, yet?
Marc

david.isaac@dlh.de wrote:

Dear Mr. Leigh,

Good morning to you, I am very interested to purchase your SHFT-EVO-K95-KT which consist of one Star + Spring and Detent Arm. I have had purchase your Velocity Stacks previously.

The Shift Star Kit is for my ZX10-R (04).

Please confirm total cost and approximate date I should receive items. Special discount would be very much appreciated. For your information Loois Motor, Meng Tong will fit these items for me as we are good friends. Upon confirmation, I will e-mail you my payment details.

Question:

Do I need to Loctite the screw for the Star and the Detent Arm?

yes

 Yours Sincerely,

David Isaac


Remove the clutch cover - for 06/07,  required to drain oil and remove the oil pan in order to remove circlip on shift shaft.
Remove clutch assembly (requires impact wrench and l27mm deep socket - thanks Brian Kelleher)




Replace the arm and new STAR.



Replace the shift shaft and clutch assembly -

ALWAYS use the Kawasaki Service Manual!!!
