yz250

00-15




(sample pic, not actual star)


SHFT-STAR-Y45 (star only)  $139.95

(inc 1 EVO STAR only and gaskets not supplied)
1. Choose your shipping method
2.


yz250 92-15

EVO Shift STAR


The Factory Pro EVO Shift STAR Upgrade kit will upgrade your bike to "better than new" quicker, more consistent shift action.


Proven in 15+ years of pro level use.

Virtually eliminate missed shifts.

Decreases shift process 5mm to 10ms

Make shifting MUCH quicker and virtually eliminate missed shifts.

Helps address missed shifts caused by poor shift detent "star" profile.
Helps prevent shift fork and gear engagement dog damage caused by missed shifts.

The Factory Pro Shift STAR kit is an awesome upgrade for the notchy shifting.

Installation: Slightly more complicated than replacing the clutch basket. It's right behind the clutch basket.

No case splitting required.

Feedback

Shift Star kit worked awesome!  Not one missed shift all weekend.  Easier to find neutral, too - Which is good because I have to put it in neutral to start it for some reason. Doesn't like to start with the clutch in. With the close ratio tranny, I did a lot of shifting.

Leigh Thomas - Mojave area




Hybrid Ceramic Microbearing
 Shift Detent Arm    $79.95
00-15

replaces original
#5CU-18140-01-00  shift arm

1. Choose your shipping method
2.



The stock bearing on the yz250 is a bit fragile with steel balls, steel retainers, steel shields.


The F-Pro Hybrid Ceramic bearing has ceramic balls, digestible plastic retainers and rubber seals.









TECH



Yamahas yz250f and yzf450f Shift STAR Installation


Remove the clutch cover. Remove the clutch assembly
(use your shop manual)
Remove the little top hat collar and don't lose it.
Pinch the pawls together and gently remove the pawl holder. Hold around the outside so the pawls, springs and plungers stay together.

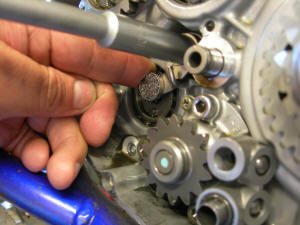

Turn the star till it reaches the stop (it's either 6th or 1st gear). Turn the clutch shaft to get it to go into the "next" gear.

Unscrew the center stud - it takes a deep 12mm socket.





Use a 10mm socket and remove the 6mm pivot bolt for the stock detent arm.




This is what comes out.

You will replace the detent arm and the spring with new Factory Pro parts.


Put in the new Factory Pro Microbearing Detent Arm and new heavier duty spring.

A good hint is to Loctite the pivot bolt with Blue  Loctite. Not absolutely required, but a nice touch.


Lever the arm out and slip in......
the new Factory Pro Detent STAR. Install the center stud.
There's the new detent arm and the new preproduction detent STAR.

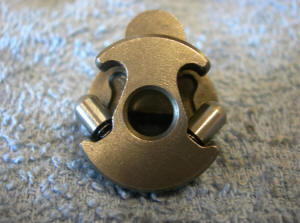

Here's how the shift pawl holder is assembled.

These are the spring loaded plungers.

Next, install the pawls.
Squeeze the pawls in and slip into the ID of the Detent STAR.
